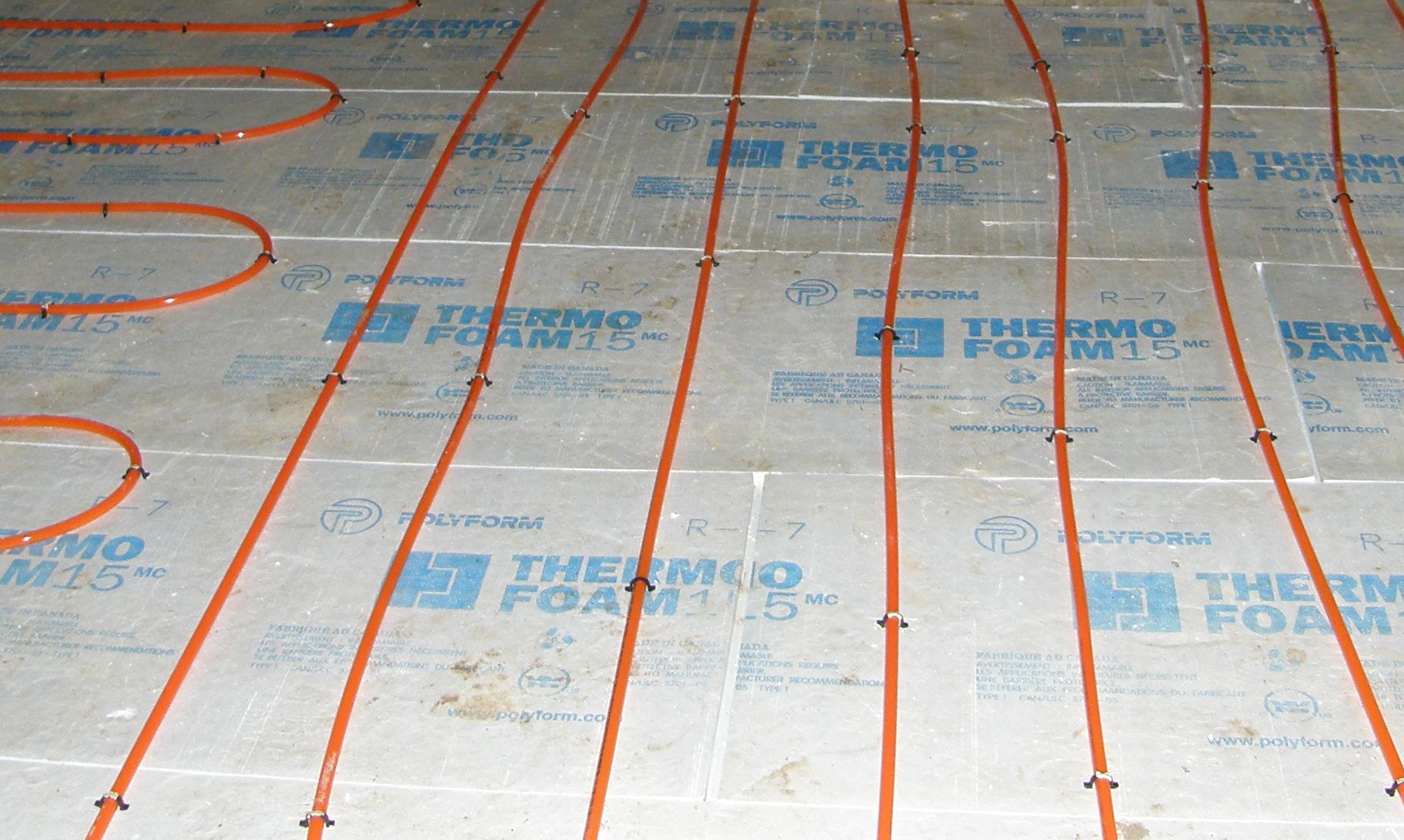

Before the basement concrete slab was poured, a 2″ thick EPS (R7) was put in place to reduce the heat transfer to the soil beneath. In addition, PEX tubing was run in 90% of the basement floor space to allow for in-floor radiant heating. In-floor radiant heating allows for a more comfortable basement floor as it is no longer cold to walk on, and is efficient as heat rises throughout the house in the winter, as well as a reduction in the heating area that the fan coil has to service. The garage was insulated and roughed-in with the same system for the ability in the future of a heated garage.
The tubes are connected to the Daikin Altherma system, which provides radiant heating to the basement floor as well as the fan coil to heat the ground and second floors, as well as heating the hot water for the house.
For our house, we have chosen to use insulated concrete forms (ICF) as the primary wall system for the exterior walls of the house, with sections that are structural insulated panels (SIP).
ICFs are made of 2 sheets of expanded polystyrene (EPS, aka Styrofoam) with concrete poured in between. The materials comes in blocks, and is assembled on-site in a similar fashion to Lego blocks. The blocks act as the form work for the concrete as it is poured into the cavities between the two sheets of EPS, and is a stay-in-place form work, as the blocks of EPS are not removed after the curing of the concrete. The EPS acts as the insulation for the wall, and the concrete provides the strength, and a total air and thermal break between the inside and outside of the walls.
On the inside, drywall is directly fastened to the ICF, as the ICF have built-in plastic strappings that act both as a structural component for strength and for holding the EPS together, as well as for screwing the drywall into the straps. For electrical, the EPS is thick enough to accomodate the mounting of the electrical boxes, with the wires being embedded into the EPS. No penetrations through the concrete is required, except for venting purposes.
This method of building provides a much stronger structure, which may be an advantage if you are in an natural disaster prone area. Other benefits include a much tighter building envelope, as the concrete wall system is a monolithic system and no possible penetrations for air leakage. This translates into a significant reduction of heat loss, as up to 1/2 of the heat loss of a house can be attributed to air leakage. If you live near a noisy environment, another benefit is the significant noise reduction from the outside.
In using the ICF, we decided to go from basement to the roof, except in areas on the second floor where there was nothing underneath to bear the weight of the concrete. For the basement walls, this is fairly cost competitive with traditional poured concrete walls or cement blocks. Once we went above ground, however, it becomes a significant cost upgrade to use ICF. For this reason, there are some builders that will choose to use ICF for the basement, and either traditional timber frame (cheapest) or SIPs (more expensive than traditional, less expensive than ICF) for above grade exterior walls. Expect an upcharge of $8-10/sq.ft. wall space material and labour from traditional timber frame, and an upcharge of $5-7/sq.ft. wall space from SIP, depending on complexity of project.
In our house, we have chosen to use blocks manufacturered by Nudura, supplied through our contractor for the exterior “framing” (Stevens Construction). The blocks consists of 2 5/8″ sheets of EPS on the outsides, with a 6″ cavity for the concrete. Other cavity thicknesses are available, starting at 4″ and increasing in 2″ increments.
CaGBC LEED for Homes – Points can be acheived in Energy and Atmosphere, either via the air leakage tests (EA 3.3) or exceptional energy performance (EA 1.2) via the ERS/HERS method. In our case, it would qualify for Material and Resources (MR 2.2) for local content, as the concrete and the ICF are both manufactured within 800km.
